#14 x 1" Phillips Pan Head Self Tapping Sheet Metal Screw - Zinc Plated
Bulk Discounts
| Quantity | Discounted price |
|---|---|
| Buy 1 – 49 pcs | $0.18 /each |
| Buy 50 – 499 pcs | $0.16 /each |
| Buy 500 – 999 pcs | $0.14 /each |
| Buy 1000 – 2499 pcs | $0.13 /each |
| Buy 2500 – 4999 pcs | $0.11 /each |
| Buy 5000 + pcs | $0.09 /each |
#14 x 1" Phillips Pan Head Self Tapping Sheet Metal Screw - Zinc Plated - 1 Pack is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

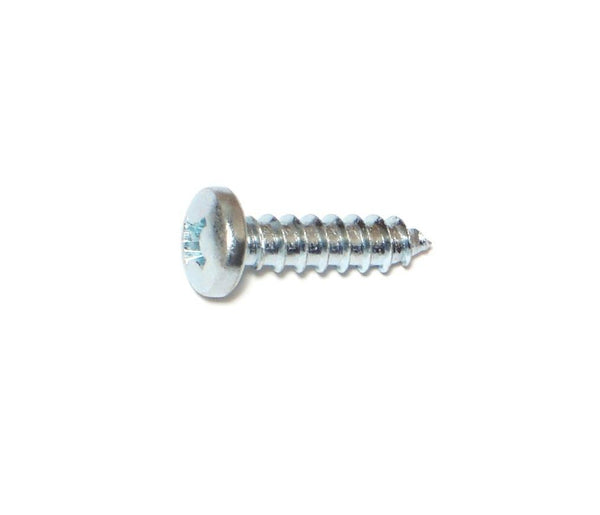

#14 x 1" Phillips Pan Head Self-Tapping Sheet Metal Screw - Zinc Plated
Zinc-plated steel self-tapping screw that cuts its own thread as it drives - no tap, no nut, no insert. The pan head seats flat with a wide bearing surface, and the Phillips #3 recess keeps the driver centered under torque. Drill a 3/16" pilot hole and drive.
Specifications
- Size: #14 (#14-10 thread)
- Length: 1"
- Head: Pan head, Phillips #3 drive
- Point: Type A self-tapping
- Material: Steel, zinc plated (corrosion resistant)
- Fully threaded, sold individually - bulk pricing available
Type A point: coarse, widely spaced threads with a sharp gimlet point that bites instantly into thin sheet metal, wood, and soft plastic.
Best For
Ideal for license plates and plate brackets, heavy brackets, bumpers, and thick sheet metal. Works in sheet metal, plastic, and wood.
How to Install
Drill a 3/16" pilot hole in sheet metal (skip the pilot in soft plastic or thin wood), set your driver to a Phillips #3 bit, and drive until the pan head seats flush. Don't overtighten in thin gauge - stop when snug so the threads don't strip.
Size Chart - All Sizes We Stock
| Size x Length | Thread | Point Type | Pilot Hole | Driver Bit |
|---|---|---|---|---|
| #4 x 3/4" | #4-24 | Type AB | 3/32" | Phillips #1 |
| #6 x 3/4" | #6-20 | Type AB | 7/64" | Phillips #2 |
| #6 x 1" | #6-20 | Type AB | 7/64" | Phillips #2 |
| #6 x 1-1/4" | #6-18 | Type A | 7/64" | Phillips #2 |
| #8 x 1-1/4" | #8-15 | Type A | 1/8" | Phillips #2 |
| #10 x 1" | #10-16 | Type AB | 9/64" | Phillips #2 |
| #10 x 1-1/2" | #10-16 | Type AB | 9/64" | Phillips #2 |
| #10 x 2-1/4" | #10-16 | Type AB | 9/64" | Phillips #2 |
| #12 x 2-1/2" | #12-14 | Type AB | 5/32" | Phillips #3 |
| #14 x 1" (this screw) | #14-10 | Type A | 3/16" | Phillips #3 |
Why Buy From Rubberfeetwarehouse
Buy exactly the quantity you need - no forced 100-packs. Ships fast from our South Carolina warehouse; contact us for bulk pricing on 500+.
Pilot Hole and Driver Bit
Pilot Hole and Driver Bit
Drill the pilot hole listed in the specs before driving in sheet metal; skip the pilot in soft plastic or thin wood. Use the matching Phillips driver size and stop when the head seats snug - overtightening strips thin gauge.
Delivery and Shipping
Delivery and Shipping
Usually ships within 24 hours from our South Carolina warehouse. All orders include tracking.
#14 x 1" Phillips Pan Head Self Tapping Sheet Metal Screw - Zi...
Screw Specifications
| Length | 1" (25.4 mm) |
|---|---|
| Thread Pitch | #14-10 |
| Drive Type | Phillips #3 |
| Head Type | Pan Head |
| Screw Type | Self-Tapping, Type A |
| Pilot / Screw Hole | 3/16" (4.76 mm) |
| Fastener | Screw |
| Shape | Pan Head |
| Material | Zinc-Plated Steel |
| Finish / Color | Zinc Plated |
| Pack Quantity | 1 |
| Fits | 3/16" pilot holes in sheet metal; self-taps in plastic and wood |
| Applications | License plates and plate brackets, heavy brackets, bumpers, and thick sheet metal |
Type A: coarse sharp point for thin metal and wood. Type AB: versatile point for metal, plastic, and wood.
Fraction ↔ Decimal ↔ Millimeter Converter
Type a measurement in any format — fraction (3/8), decimal inches (0.375), or millimeters (9.5mm) — and get all three, plus the nearest standard hardware fraction.
Frequently Asked Questions
What is a self-tapping screw?
It cuts its own thread as it drives - no tap, no nut, no insert. Type A has a coarse sharp point for thin metal and wood; Type AB adds tighter thread spacing for metal, plastic, and wood.
What pilot hole should I drill?
The recommended pilot for this size is in the specs table. Drill it in sheet metal; skip the pilot in soft plastic or thin wood.
Will these rust?
They are zinc plated for corrosion resistance in indoor and sheltered use. For constant outdoor exposure or marine use, ask us about stainless alternatives.
