Rubber Bushings for Shock Absorption in Equipment

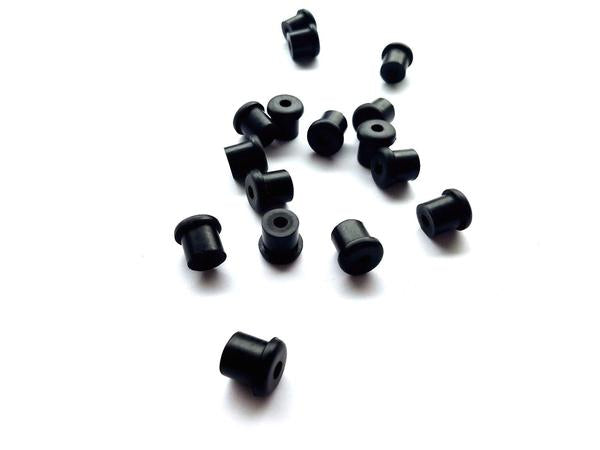

Rubber Bushings – Sleeves, Spacers & Vibration Isolation Bushings (All Sizes)

(3 products)

3 sizesfrom $0.18ships from Elgin, SCbulk pricing from 50+

Shop rubber bushings — cylindrical rubber sleeves and spacers that cushion bolts, isolate vibration, protect wires passing through metal, and take up slack between a fastener and a hole. A rubber bushing works anywhere metal-on-metal contact would rattle, wear, or conduct vibration: equipment mounting points, machinery frames, panel pass-throughs, and light automotive or appliance repairs.

How to size a rubber bushing: match the inside diameter (ID) to your bolt or shaft, the outside diameter (OD) to the hole or clearance available, and pick thickness/length based on the gap you're filling. Thick-section neoprene washers and spacers (up to 1/2" thick) work as flat bushings under fasteners, while rubber grommets handle lined pass-through holes in sheet metal.

Common uses: vibration isolation on motor and equipment bolts, sleeve spacers for machinery, wire and cable protection through panels, anti-rattle isolation on brackets, and cushioned mounting for pumps, fans, and compressors. For complete stud-mounted isolation, see our rubber vibration isolator mounts. Material questions? Check the rubber material guide. Production quantities? Bulk pricing available.

Rubber bushing sizes

Fits hole (stem dia.) Center hole Product
3/8" 1/4" 3/8" rubber bushing, 3/4" flange
1/2" 3/16" 1/2" rubber bushing
3/4" 7/16" 3/4" rubber bushing

Rubber bushing FAQ

How do I choose a rubber bushing size? Match the stem diameter to the hole in your panel or bracket, then check that the center hole suits the bolt, rod or wire that passes through it. The flange sits on the face of the panel and stops the bushing pushing through.

Rubber bushing or rubber grommet? A flanged bushing is a solid sleeve that cushions a bolt or rod and takes up clearance; a rubber grommet has a groove that locks into a thin panel and lines the hole for wires and hoses. More in grommet vs bushing.

What if I need a different size? Thick neoprene rubber washers (up to 1/2" thick) work as flat bushings and spacers under a bolt head in many more sizes.

View as

Applications

  • Shop rubber bushings — cylindrical rubber sleeves and spacers that cushion bolts, isolate vibration, protect wires passing through metal, and take up slack between a fastener and a hole.
  • Common uses: vibration isolation on motor and equipment bolts, sleeve spacers for machinery, wire and cable protection through panels, anti-rattle isolation on brackets, and cushioned mounting for pumps, fans, and compressors.

Rubber Bushings: questions

How do I choose a rubber bushing size?
Match the stem diameter to the hole in your panel or bracket, then check that the center hole suits the bolt, rod or wire that passes through it. The flange sits on the face of the panel and stops the bushing pushing through.
Rubber bushing or rubber grommet?
A flanged bushing is a solid sleeve that cushions a bolt or rod and takes up clearance; a rubber grommet has a groove that locks into a thin panel and lines the hole for wires and hoses. More in grommet vs bushing.
What if I need a different size?
Thick neoprene rubber washers (up to 1/2" thick) work as flat bushings and spacers under a bolt head in many more sizes.
How does bulk pricing work?
Bulk discounts apply automatically in the cart, per item: 50+ pieces save 10%, 500+ save 20%, 1,000+ save 30%, 2,500+ save 40% and 5,000+ save 50%. Each product page shows the price at every tier.
How fast do orders ship?
Orders usually ship within 24 hours of being placed, by UPS or FedEx with a tracking number, from our warehouse in Elgin, South Carolina. <a href="/pages/shipping-policy">Shipping policy</a>
