7/16" x 1/2" Rubber Vibration Isolator Mount - 8-32 x 3/8" Stud (M/F)
Get Notified When Back in Stock
Sign up to receive an instant notification when this item is back in stock. Don’t miss out—be the first to know!
Price per piece by quantity
- 1–49 pcs$2.78
- 50+ pcs$2.50
- 500+ pcs$2.22
- 1,000+ pcs$1.95
- 2,500+ pcs$1.67
- 5,000+ pcs$1.39
Bulk Discounts
| Quantity | Discounted price |
|---|---|
| Buy 1 – 49 pcs | $2.78 /each |
| Buy 50 – 499 pcs | $2.50 /each |
| Buy 500 – 999 pcs | $2.22 /each |
| Buy 1000 – 2499 pcs | $1.95 /each |
| Buy 2500 – 4999 pcs | $1.67 /each |
| Buy 5000 + pcs | $1.39 /each |
Need 5,000+ pieces or a recurring order? Request a bulk quote
7/16" x 1/2" Rubber Vibration Isolator Mount - 8-32 x 3/8" Stud (M/F) is backordered and will ship as soon as it is back in stock.
Sizing help: Vibration mount size chart All 9 sizes in this range Shop all Rubber Vibration Isolator Mounts Inch ↔ mm converter
Couldn't load pickup availability
- Usually ships within 24 hours from Elgin, SC (shipping policy)
- UPS or FedEx with a tracking number on every order
- Returns accepted up to 30 days after delivery (return policy)
- Bulk discounts by quantity, quotes for large orders (request a quote)
- Diameter
- 7/16"
- Height
- 1/2"
- Thread
- #8-32
- Material
- Natural Rubber
Need more than one size?
Most of our multi-item orders mix sizes of the same part. Nearby sizes:
Quantities start at the $20.00-per-item minimum.
Description
Description

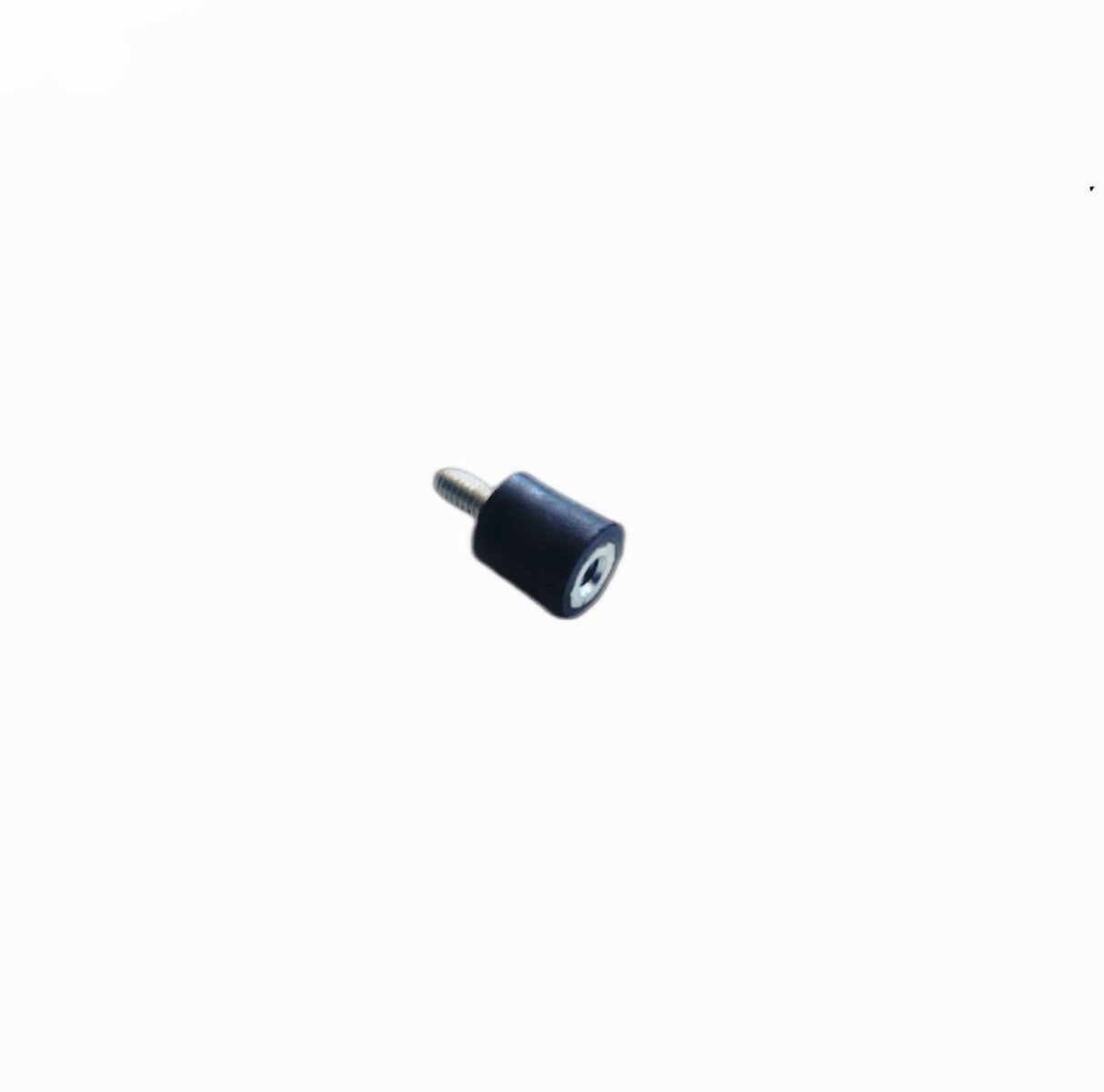

Rubber Vibration Isolator Mount (7/16" Diameter x 1/2" Height) 8-32 x 3/8" Length Stud With Female Insert
These mounts measure 1/2" in thickness (rubber height) and 7/16" in diameter (rubber diameter) Studs are 3/8" Long with 8-32 male stud and female insert on the opposite side.
Provides excellent noise and vibration reduction.
Can be used on/in:
Water pumps Construction Automobile Electronic components Medical equipment Home appliance Mechanical equipment Office facilities Aviation Air compressors Diesel engines Gasoline engines Industrial Machines and may more applications
M/M, M/F, F/F - Which Configuration?
M/M, M/F, F/F - Which Configuration?
M/M = threaded studs both ends (bolt equipment to frame). M/F = stud one end, threaded insert the other (bolt from one side). F/F = inserts both ends (screws from both sides). Match the thread size and stud length in the specs to your mounting holes.
Delivery and Shipping
Delivery and Shipping
Usually ships within 24 hours from our South Carolina warehouse. All orders include tracking.
Similar Products
SKU: MSRBF83251658
$0.92Unit price /Unavailable
Rubber Bumper Feet #8-32 x 1/4" Machine Screw - Rubber: 11/32" Height x 3/4" Diameter
SKU: MSRBF83214
$0.92Unit price /Unavailable
Mount Specifications
| Rubber Diameter | 7/16" (11.11 mm) |
|---|---|
| Rubber Height | 1/2" (12.7 mm) |
| Stud Length | 3/8" (9.53 mm) |
| Thread Pitch | #8-32 |
| Insert Type | Male/Female |
| Material | Natural Rubber |
| Hardness | 60 Durometer |
| SKU | VBM7161283238MF |
Rubber diameter x height, thread size, and stud length below.
Size & fit guide
| Label | Dimension | Size |
|---|---|---|
| A | Rubber diameter | 7/16" 11.1 mm |
| B | Rubber height | 1/2" 12.7 mm |
| C | Stud length | 3/8" 9.5 mm |
| D | Thread | #8-32 |
Diagram shows studs on both ends. This mount: Male/Female.
Schematic, not to scale. Sizes are nominal.
Fits
- #8-32 thread, 3/8" stud length (Male/Female)
Vibration Mount Finder
Match the mount you have now: pick its thread size and stud configuration, and measure the rubber diameter and height.
Full guidance: how to choose vibration isolator mounts.
Frequently Asked Questions
What thread and stud does this one have?
#8-32 thread, 3/8" stud length (Male/Female). The rubber is 7/16" in diameter and 1/2" high.
What is it made of?
Natural Rubber, 60 Durometer.
What do M/M, M/F, and F/F mean?
M/M has threaded studs on both ends, M/F has a stud on one end and a threaded insert on the other, and F/F has inserts on both ends. Choose based on which sides you can access with a bolt.
How do I size a vibration mount?
Match the thread size, stud configuration and stud length to your mounting holes, then match the rubber diameter and height of the mount you are replacing. Load capacity varies with the application - contact us if you need help choosing.
How many mounts do I need?
Most equipment uses one mount per corner. Tighten against the metal end faces, never by crushing the rubber.
