M6 Rubber Vibration Isolator Mounts

(3 products)

3 sizesfrom $2.68ships from Elgin, SCbulk pricing from 50+

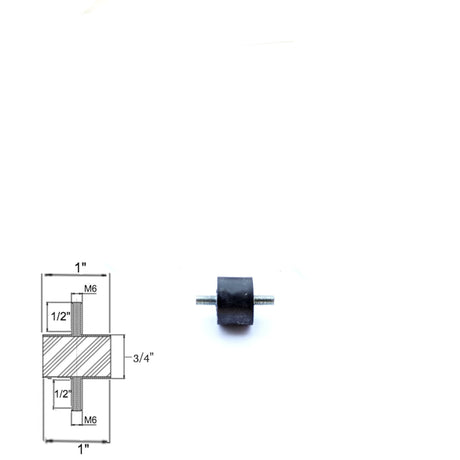

These isolator mounts have M6 metric studs: 6 mm diameter, normally with a 1.0 mm coarse pitch. M6 is the standard on a lot of European and Asian equipment, fans, pumps, 3D printer and CNC frames, and imported furniture, so an inch-thread mount will not fit those tapped holes.

M6 or 1/4-20? The two are close in size (6 mm vs 6.35 mm), which is why they get mixed up. The quickest check is to try a known M6 nut by hand; if it binds after a turn or two, you probably have 1/4-20. A thread pitch gauge settles it. Once the thread is confirmed, measure the space between the parts you are isolating and choose the rubber height that fits, then check the stud length against the depth of the tapped hole so it does not bottom out before the mount sits flat.

Related sizes: 1/4-20 mounts & feet · 5/16-18 mounts & feet · 10-32 mounts · All vibration mounts
View as

M6 Rubber Vibration Isolator Mounts: questions

M6 or 1/4-20?
The two are close in size (6 mm vs 6.35 mm), which is why they get mixed up. The quickest check is to try a known M6 nut by hand; if it binds after a turn or two, you probably have 1/4-20. A thread pitch gauge settles it. Once the thread is confirmed, measure the space between the parts you are isolating and choose the rubber height that fits, then check the stud length against the depth of the tapped hole so it does not bottom out before the mount sits flat.
How does bulk pricing work?
Bulk discounts apply automatically in the cart, per item: 50+ pieces save 10%, 500+ save 20%, 1,000+ save 30%, 2,500+ save 40% and 5,000+ save 50%. Each product page shows the price at every tier.
How fast do orders ship?
Orders usually ship within 24 hours of being placed, by UPS or FedEx with a tracking number, from our warehouse in Elgin, South Carolina. <a href="/pages/shipping-policy">Shipping policy</a>
Can I return parts I don't need?
Yes, within 30 days of delivery. Email us for an RMA number first; items must be in the condition received, with all parts and the original packaging. Refunds may carry a 15% restocking fee (exchanges do not), and the buyer pays return shipping unless the problem is our fault. <a href="/pages/return-policy">Return policy</a>
