#210 Nitrile O-Rings (100 Pack) - Buna-N NBR 70A - 3/4" ID x 1" OD x 1/8" CS
Price per piece by quantity
- 1–49 pcs$14.16
- 50+ pcs$12.74
- 500+ pcs$11.33
- 1,000+ pcs$9.91
- 2,500+ pcs$8.50
- 5,000+ pcs$7.08
Bulk Discounts
| Quantity | Discounted price |
|---|---|
| Buy 1 – 49 pcs | $14.16 /each |
| Buy 50 – 499 pcs | $12.74 /each |
| Buy 500 – 999 pcs | $11.33 /each |
| Buy 1000 – 2499 pcs | $9.91 /each |
| Buy 2500 – 4999 pcs | $8.50 /each |
| Buy 5000 + pcs | $7.08 /each |
Need 5,000+ pieces or a recurring order? Request a bulk quote
#210 Nitrile O-Rings (100 Pack) - Buna-N NBR 70A - 3/4" ID x 1" OD x 1/8" CS is backordered and will ship as soon as it is back in stock.
Sizing help: O-ring size chart Shop all Rubber O-Rings Inch ↔ mm converter
Couldn't load pickup availability
- Usually ships within 24 hours from Elgin, SC (shipping policy)
- UPS or FedEx with a tracking number on every order
- Returns accepted up to 30 days after delivery (return policy)
- Bulk discounts by quantity, quotes for large orders (request a quote)
- ID
- 3/4"
- OD
- 1"
Need more than one size?
-
2 × $14.16
- 3 × $6.90
- 4 × $6.44
- 2 × $18.73
Each line starts at the $20.00-per-item minimum; Bulk Discounts tiers apply by quantity.
Description
Description
#210 Nitrile O-Ring (Buna-N NBR, 70A) - 3/4" ID x 1" OD x 1/8" CS
Standard AS568 dash size #210 nitrile O-ring - the exact size used across faucets, pumps, filters, and fittings worldwide. Sold as a pack of 100 so you have spares on hand for every rebuild.
Availability: Ships around Nov 24 (on order from our supplier). You can order now; your order ships as soon as this size arrives at our warehouse.
Specifications
- AS568 Dash Number: -210
- Inside Diameter: 3/4" nominal (0.734" / 18.64 mm actual)
- Outside Diameter: 1" nominal (1.012" / 25.70 mm)
- Cross Section (Width): 1/8" (0.139" / 3.53 mm)
- Material: Nitrile rubber (Buna-N / NBR)
- Hardness: 70A durometer
- Temperature Range: -40°F to 250°F
- Color: Black | Pack of 100
Material - Why Buna-N Nitrile
Buna-N is the workhorse O-ring compound: excellent resistance to petroleum oils, fuels, hydraulic fluids, water, and silicone greases, with good abrasion and tear resistance. Not recommended for ozone/direct sunlight exposure, brake fluid, ketones, or strong acids - for those, use EPDM or Viton.
Common Applications
Water filter housings, pool and spa equipment, hydraulic cylinders, pipe unions.
How to Measure an O-Ring
Measure the inside diameter (hole to hole) and the cross-section thickness of your old ring, or measure the groove: groove inner diameter = O-ring ID, groove width slightly wider than the cross section. Match both numbers to the chart below - the dash number takes care of the rest.
AS568 O-Ring Size Chart - Sizes We Stock
| Dash # | Inside Dia. | Outside Dia. | Cross Section | Metric ID |
|---|---|---|---|---|
| #008 | 3/16" (0.176") | 5/16" | 1/16" (0.070") | 4.47 mm ID |
| #010 | 1/4" (0.239") | 3/8" | 1/16" (0.070") | 6.07 mm ID |
| #011 | 5/16" (0.301") | 7/16" | 1/16" (0.070") | 7.65 mm ID |
| #012 | 3/8" (0.364") | 1/2" | 1/16" (0.070") | 9.25 mm ID |
| #014 | 1/2" (0.489") | 5/8" | 1/16" (0.070") | 12.42 mm ID |
| #017 | 11/16" (0.676") | 13/16" | 1/16" (0.070") | 17.17 mm ID |
| #110 | 3/8" (0.362") | 9/16" | 3/32" (0.103") | 9.19 mm ID |
| #112 | 1/2" (0.487") | 11/16" | 3/32" (0.103") | 12.37 mm ID |
| #121 | 1-1/16" (1.046") | 1-1/4" | 3/32" (0.103") | 26.57 mm ID |
| #210 (this size) | 3/4" (0.734") | 1" | 1/8" (0.139") | 18.64 mm ID |
| #214 | 1" (0.984") | 1-1/4" | 1/8" (0.139") | 24.99 mm ID |
| #228 | 2-1/4" (2.234") | 2-1/2" | 1/8" (0.139") | 56.74 mm ID |
| #230 | 2-1/2" (2.484") | 2-3/4" | 1/8" (0.139") | 63.09 mm ID |
| #238 | 3-1/2" (3.484") | 3-3/4" | 1/8" (0.139") | 88.49 mm ID |
| #357 | 5-1/2" (5.475") | 5-7/8" | 3/16" (0.210") | 139.06 mm ID |
Why Buy From Rubberfeetwarehouse
Genuine 70A Buna-N, ships from our South Carolina warehouse. Need a different size or larger quantity? Contact us.
Buna-N Material Guide
Buna-N Material Guide
Buna-N (Nitrile/NBR) 70A: excellent with petroleum oils, fuels, water, and hydraulic fluids. -40F to 250F. Not for ozone, brake fluid, or ketones - ask us about EPDM or Viton for those.
Delivery and Shipping
Delivery and Shipping
Usually ships within 24 hours from our South Carolina warehouse. All orders include tracking.
#210 Nitrile O-Rings (100 Pack) - Buna-N NBR 70A - 3/4" ID x 1...
$14.16 each
O-Ring Specifications
| Inside Diameter | 3/4" (19.05 mm) |
|---|---|
| Outside Diameter | 1" (25.4 mm) |
| Cross Section / Width | 1/8" (3.18 mm) |
| SKU | ORING210100PCS |
AS568 nominal dimensions. Measure your groove ID and cross section to confirm fit.

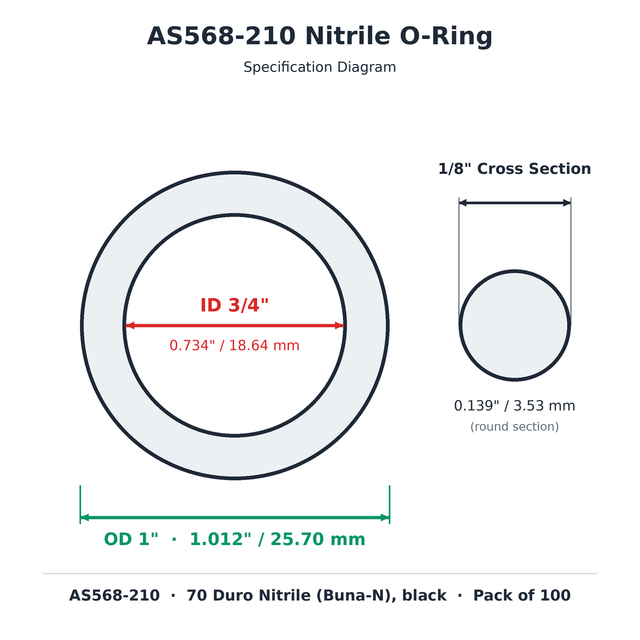

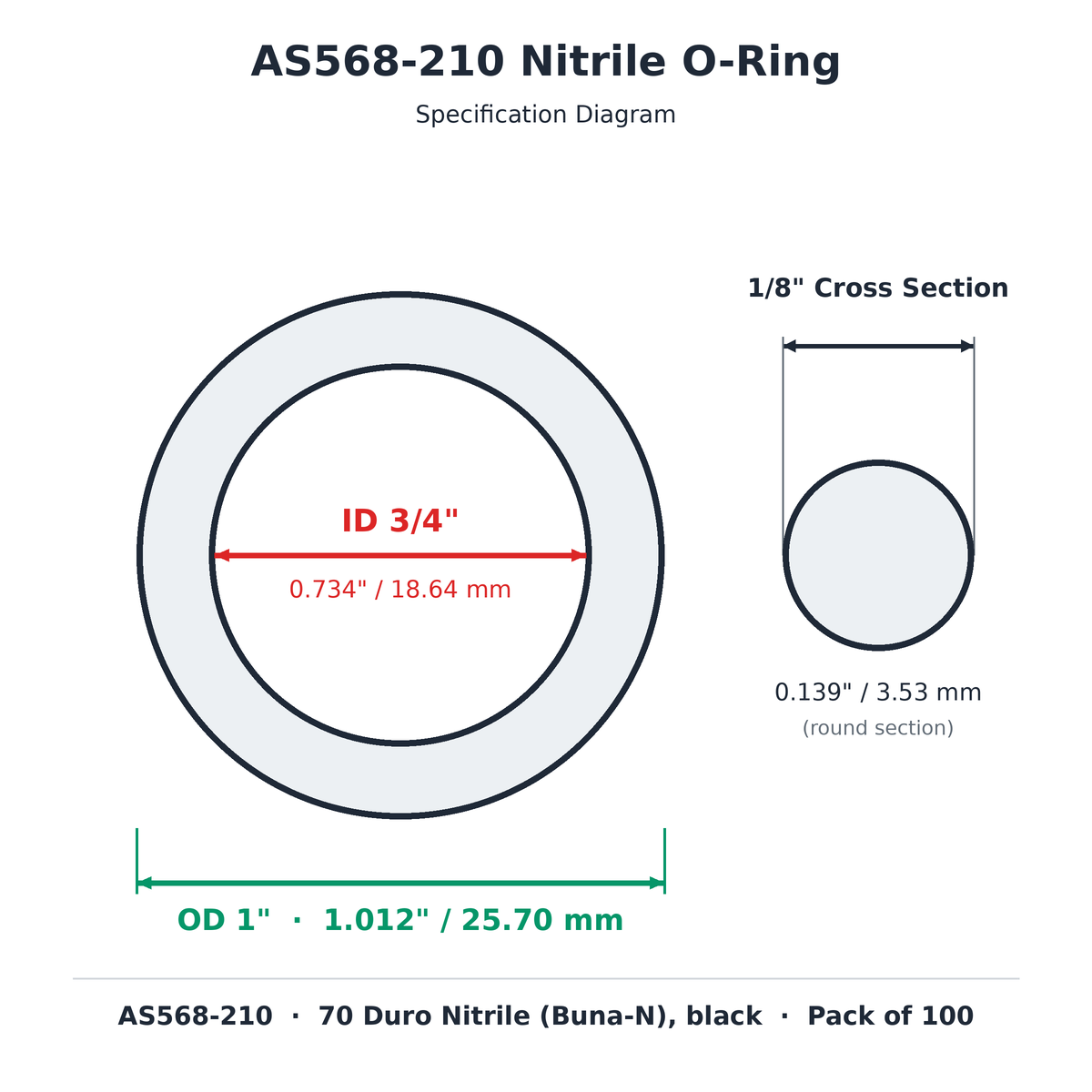

Size & fit guide
| Label | Dimension | Size |
|---|---|---|
| A | Inside diameter | 3/4" 19.1 mm |
| B | Outside diameter | 1" 25.4 mm |
| C | Cross section | 1/8" 3.2 mm |
Schematic, not to scale. Sizes are nominal.
How to install
Wipe the groove clean and apply a thin film of silicone grease before seating the ring - it prevents pinching and doubles seal life on anything that gets opened regularly, like filter housings.
O-Ring Size Calculator
Enter your O-ring's inside diameter and cross-section — get the outside diameter and recommended static groove dimensions (25% squeeze).
Measuring a worn ring? Use calipers on ID and thickness — not the stretched old ring. Compound questions: rubber compatibility chart.
Frequently Asked Questions
How do I measure an O-ring?
Measure the inside diameter and the cross-section thickness of your old ring, or measure the groove: groove ID equals O-ring ID. Match both to the AS568 chart on this page.
Is Buna-N right for my application?
Buna-N (nitrile) handles petroleum oils, fuels, water, and hydraulic fluid from -40F to 250F. It is not for ozone/direct sun, brake fluid, or ketones - ask us about EPDM or Viton for those.
Should I lubricate O-rings at install?
Yes - a thin film of silicone grease prevents pinching and roughly doubles seal life on housings that get opened regularly, like water filter sumps.
