15/64" (6 mm) Pull-Through Rubber Bumper Feet / Grommet Bumpers - Fits 1/8" Holes (3/32" Panel) - Black EPDM
Price per piece by quantity
- 1–49 pcs$0.15
- 50+ pcs$0.14
- 500+ pcs$0.12
- 1,000+ pcs$0.11
- 2,500+ pcs$0.09
- 5,000+ pcs$0.08
Bulk Discounts
| Quantity | Discounted price |
|---|---|
| Buy 1 – 49 pcs | $0.15 /each |
| Buy 50 – 499 pcs | $0.14 /each |
| Buy 500 – 999 pcs | $0.12 /each |
| Buy 1000 – 2499 pcs | $0.11 /each |
| Buy 2500 – 4999 pcs | $0.09 /each |
| Buy 5000 + pcs | $0.08 /each |
Need 5,000+ pieces or a recurring order? Request a bulk quote
15/64" (6 mm) Pull-Through Rubber Bumper Feet / Grommet Bumpers - Fits 1/8" Holes (3/32" Panel) - Black EPDM is backordered and will ship as soon as it is back in stock.
Sizing help: Rubber feet size chart All 19 sizes in this range Shop all Rubber Feet Inch ↔ mm converter
Couldn't load pickup availability
- Usually ships within 24 hours from Elgin, SC (shipping policy)
- UPS or FedEx with a tracking number on every order
- Returns accepted up to 30 days after delivery (return policy)
- Bulk discounts by quantity, quotes for large orders (request a quote)
- OD
- 0.236" (6 mm)
- Groove
- 3/32"
- Material
- EPDM Rubber
Need more than one size?
-
134 × $0.15
-
View 1/2" x 1/4" Solid Stem Rubber Bumper Feet - 1/4" Stem Dia. x 3/8" Stem Length, NeopreneNearby size16 × $1.29
-
View 1/2" x 5/32" Flat Push-In Rubber Bumper Feet / Hole Plugs - Fits 1/4" Holes (1/16" Panel)Nearby size100 × $0.20
-
View 1/2" x 5/32" Flat Push-In Rubber Bumper Feet / Hole Plugs - Fits 3/16" Holes (1/16" Panel)Nearby size58 × $0.35
Each line starts at the $20.00-per-item minimum; Bulk Discounts tiers apply by quantity.
Product Overview

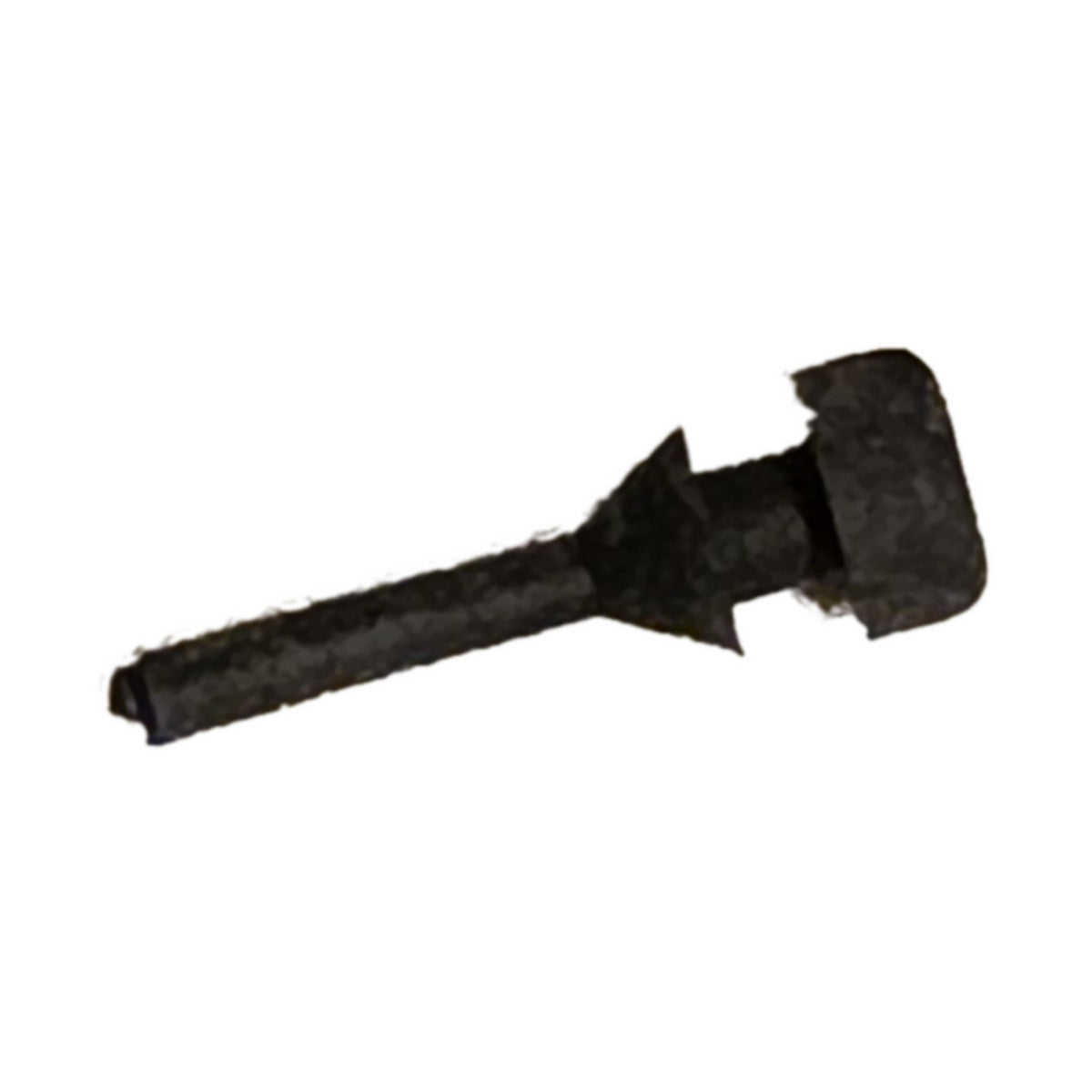

Pull-through rubber grommet bumper with a flat 0.236" (6 mm) round head and a long pull stem with a barb. Feed the tail through a 1/8" (3 mm) hole and pull until the barb snaps through; the groove locks the bumper into panels up to 0.098" (2.5 mm) thick. Molded in black 60 durometer EPDM rubber. Sold individually.
Features and Benefits
- Pull-Through Installation: The long tail makes it easy to pull the bumper into small holes from one side; trim the excess tail after installing.
- Secure Locking Barb: A 0.196" (5 mm) barb holds the bumper in place once it is pulled through.
- Small Flat Head: A 0.236" (6 mm) diameter, 0.118" (3 mm) tall head gives a low-profile cushioned foot or stop.
- EPDM Rubber: Black 60 Shore A EPDM resists weather, ozone and heat better than standard rubber.
- Versatile Uses: Anti-vibration fan and case mounts, feet for electronics and small enclosures, glass and panel bumpers, door and lid stops.
Specifications
- Pack Quantity: Sold Individually
- Fits Hole: 1/8" (3 mm)
- Panel Thickness (Groove): up to 0.098" (2.5 mm)
- Head Diameter: 0.236" (6 mm)
- Head Height: 0.118" (3 mm)
- Barb Diameter: 0.196" (5 mm)
- Pull Stem Length: 0.472" (12 mm)
- Overall Length: 0.688" (17.5 mm)
- Material: EPDM rubber, 60 Shore A durometer
- Color: Black
Delivery and Shipping
Delivery and Shipping
Usually Ships Within 24 Hours. All Orders Are Shipped With Tracking Numbers.
15/64" (6 mm) Pull-Through Rubber Bumper Feet / Grommet Bumper...
$0.15 each
Specifications
| Outside Diameter | 0.236" (6 mm) |
|---|---|
| Overall Height | 0.688" (17.5 mm) |
| Height | 0.118" (3 mm) |
| Groove Width | 3/32" (2.38 mm) |
| Stem Diameter | 0.196" (5 mm) barb |
| Shape | Round head, barbed pull-through stem |
| Material | EPDM Rubber |
| Hardness | 60 Hardness |
| Finish / Color | Black |
| Pack Quantity | 1 |
| Fits | 1/8" (3.18 mm) |
| Applications | PC fan and case anti-vibration mountsFeet for electronics and small enclosuresGlass and panel bumpersDoor, lid and cabinet stopsDIY and repair projects |
| SKU | PIRGB3321818156480 |
All dimensions are nominal. Metric equivalents shown in parentheses.
Size & fit guide
| Label | Dimension | Size |
|---|---|---|
| A | Top diameter | 0.236" (6 mm) |
| B | Base height | 0.118" (3 mm) |
| C | Stem diameter | 0.196" (5 mm) barb |
| D | Groove (panel thickness) | 3/32" 2.4 mm |
| E | Panel hole it fits | 1/8" 3.2 mm |
Schematic, not to scale. Sizes are nominal.
Fits
- Panel holes 1/8"
- Panels 3/32" thick (groove width)
Used for
- PC fan
- case anti-vibration mounts
- Feet for electronics
- small enclosures
- Glass
- panel bumpers
- Door
- lid
- cabinet stops
- DIY
- repair projects
Frequently Asked Questions
What hole and panel does it fit?
It fits 1/8" holes, and the 3/32" groove grips the panel. The top is 0.236" (6 mm) in diameter and 0.118" (3 mm) high.
How do push-in feet size?
Two numbers matter: the panel hole diameter the stem snaps into, and the panel thickness the groove grips. Match both from the specs table.
Do they need adhesive?
No - the stem snaps in and the groove locks on the panel. No tools, no glue.
What are they used for?
Equipment feet, hole plugs, and bumpers on electronics, appliances, cabinets, and sheet metal enclosures.
